Hakken Core Drills
SMD08
  • SMD08
  • Spindle thread size 1 1/4"-7 (industry standard)
  • Motor comes with slip clutch that can be easily adjusted from outside the motor
  • 4 adjustable leveling screws for drilling uneven surfaces
  • Double insulated construction
  • Water valve swivels 360 degrees
  • Engineered for both vertical and horizontal drilling
  • Light weight drill is easy to carry and lift for wall drilling
  • Roller slide carriage provides smooth drilling with low friction
  • One-year limited warranty
  • view product list >
    Power 120V
    Rated Current 15A
    Max Output 2.4kw (3.2HP)
    Max Bit Capacity 8"
    Spindle Thread 1-1/4"-7
    Column Thickness 1-15/16"
    Stand Height 31-7/8"
    Carriage Travel 19-7/8"
    Anchor Base 7" W x 8.5" L
    Clutch Type Slip
    Speed+L2 700 RPM (No Load)
    Weight 40.8 lbs. (18.5kg)
  • DUSTLESS CONNECTOR
  • Available for all sizes

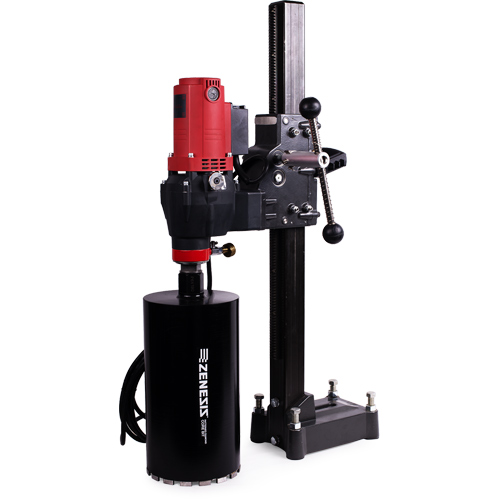

SMD12
  • SMD12
  • Spindle thread size 1 1/4"-7 (industry standard)
  • Motor comes with slip clutch that can be easily adjusted from outside the motor
  • 4 adjustable leveling screws for drilling uneven surfaces
  • Double insulated construction
  • Water valve swivels 360 degrees
  • Engineered for both vertical and horizontal drilling
  • Light weight drill is easy to carry and lift for wall drilling
  • Roller slide carriage provides smooth drilling with low friction
  • One-year limited warranty
  • view product list >
    Power 120V
    Rated Current 20A
    Max Output 2.4kw (3.2HP)
    Max Bit Capacity 12"
    Spindle Thread 1-1/4"-7
    Column Thickness 2-5/16"
    Stand Height 39-3/8"
    Carriage Travel 24-3/8"
    Anchor Base 7.5" W x 10" L
    Clutch Type Slip
    Speed+L2 400/950 RPM (No Load)
    Weight 63.8 lbs. (28.9kg)
  • DUSTLESS CONNECTOR
  • Available for all sizes
SMD16
  • SMD16
  • Spindle thread size 1 1/4"-7 (industry standard)
  • Motor comes with slip clutch that can be easily adjusted from outside the motor
  • 4 adjustable leveling screws for drilling uneven surfaces
  • Double insulated construction
  • Water valve swivels 360 degrees
  • Engineered for both vertical and horizontal drilling
  • Light weight drill is easy to carry and lift for wall drilling
  • Roller slide carriage provides smooth drilling with low friction
  • One-year limited warranty
  • view product list >
    Power 120V
    Rated Current 30A
    Max Output 6.4kw (8.6HP)
    Max Bit Capacity 16"
    Spindle Thread 1-1/4"-7
    Column Thickness 2-5/16"
    Stand Height 39-3/8"
    Carriage Travel 24-3/8"
    Anchor Base 7.5" W x 10" L
    Clutch Type Slip
    Speed+L2 300/800/1400 RPM (No Load)
    Weight 76 lbs. (34.5kg)
  • DUSTLESS CONNECTOR
  • Available for all sizes
SMD HAKKEN STANDS
STANDARD
  • STANDARD
  • lightweight
    standard pole base
STANDARD with Large Vacuum Base
  • STANDARD with
    Large Vacuum Base
  • Including vacuum/anchor
    combination pad with
    wheels for mobility
ANGLED
  • ANGLED
  • gear type angle adjustable
    base of maximum of
    120 degrees tilt

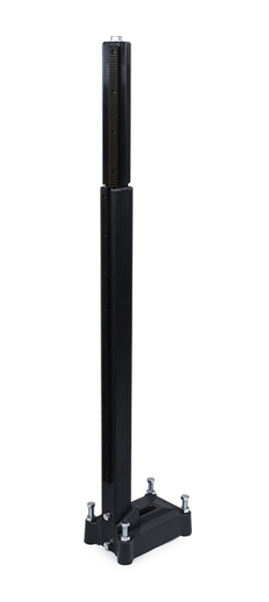

SWIVEL
  • SWIVEL
  • Extra sub column attached,
    which can be rotated
    360° for easier extraction of
    long cores
